Elevate your fabrication at scale

- high-power laser and CNC precision in a professional modular workstation.

Comprehensive Function Integration

Supports four professional functions in one machine: laser engraving, CNC carving, pen plotting, and blade cutting  all within a modular, upgrade-ready design.

High-Power 60W Diode Laser

Cuts through materials like 25 mm acrylic or 22 mm hardwood in a single pass. Delivers smooth edges with minimal charring, ideal for production-grade results.

Large-Format Working Area

Offers a standard working area of 1,200 × 2,440 mm (4′ × 8′), optimized for signage, full-sheet panel processing, or high-volume batch runs. Optional extendable Y-axis available.

Industrial-Grade Motion System

Rack-and-gear drive system maintains stable, linear movement even at full bed width. Ensures engraving spot precision of ≤ 0.01 mm - essential for large-scale accuracy.

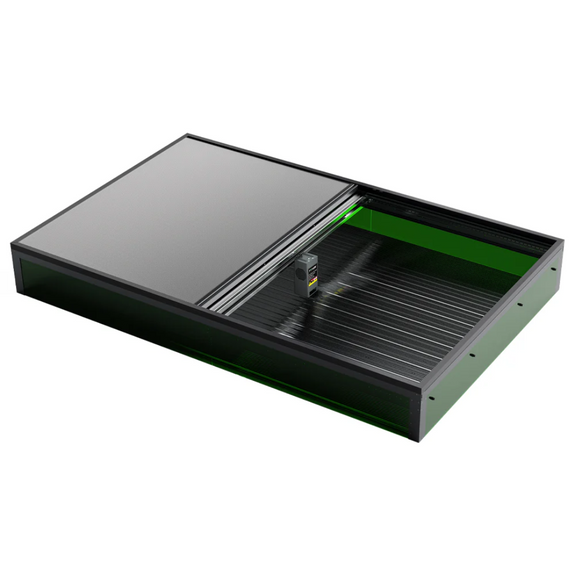

Fully Enclosed, Smoke-Free Design

Laser-safe enclosure prevents light leakage and contains fumes. Integrated exhaust system ensures a clean workspace and improves material processing clarity.

Pre-Assembled Modular Architecture

Ships 90% pre-assembled.

Toolheads are plug-and-play, making it easy to swap between laser, CNC, pen plotter, or blade cutter. Future expansions supported.

High-Speed Precision

Operates at speeds up to 600 mm/s with exceptional repeatability. Maintains consistent line density and engraving depth, even under high-speed operation.

Optimized for Production Workflows

Features include job queuing, automatic nesting, repeat job storage, and real-time status monitoring - ideal for businesses managing medium to large production runs.

Specification

Feature
Laser Power	60 W adjustable diode (20 W & 40 W compatible)
Working Area	1,200 × 1,220 mm (4′×4′) or 1,200 × 2,440 mm (4′×8′), extendable
Spot Size	0.08 × 0.06 mm
Precision	≤ 0.01 mm
Wavelength	450 nm ±10 nm
Focal Length	40 mm
Motion System	Rack and gear linear motion
Assembly	90 % pre-assembled
Software	LightBurn, LaserGRBL, Tyvok Studio (CNC ready)
Enclosure	Fully enclosed with safety interlocks + exhaust
Weight	Approx. 60 kg

Velmora ForgeX ProDeck is designed for professionals who need industrial precision, versatile material handling, and scalable production capability. Its large working area, modular flexibility, and safety-first enclosure make it the ideal all-in-one platform.

What's included

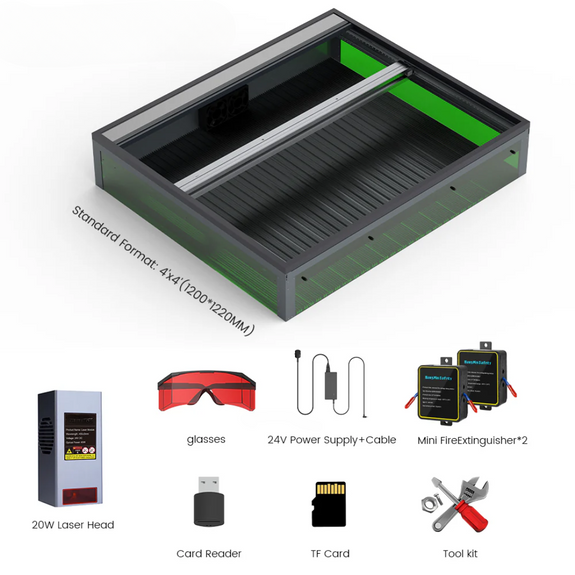

Package 1 – Standard Format 4'x4' (1200×1220MM)

1. 20W Laser Head

2. Protective Glasses

3. 24V Power Supply + Cable

4. Mini Fire Extinguisher ×2

5. Card Reader

6. TF Card

7. Tool Kit

8. Standard Engraving Frame (4’x4’ / 1200×1220MM)

9. Airflow Fan

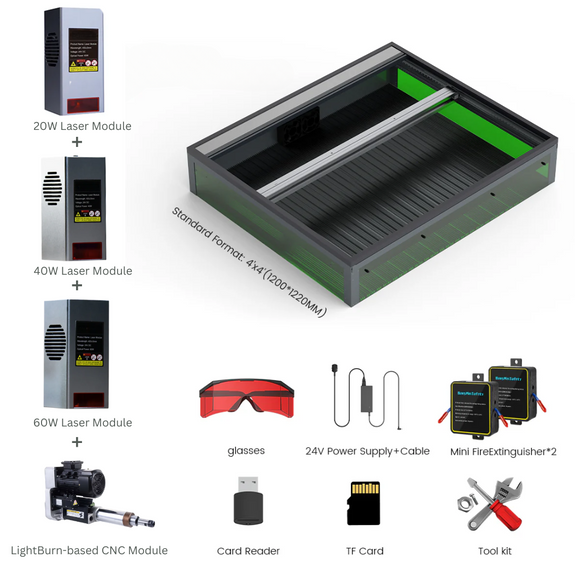

Package 2 – Standard Format 4'x4' with 3 Laser Modules + CNC

1. 20W + 40W + 60W Laser Modules (interchangeable)

2. LightBurn-Based CNC Module

3. Protective Glasses

4. 24V Power Supply + Cable

5. Mini Fire Extinguisher ×2

6. Card Reader

7. TF Card

8. Tool Kit

9. Standard Engraving Frame (4’x4’ / 1200×1220MM)

10. Airflow Fan

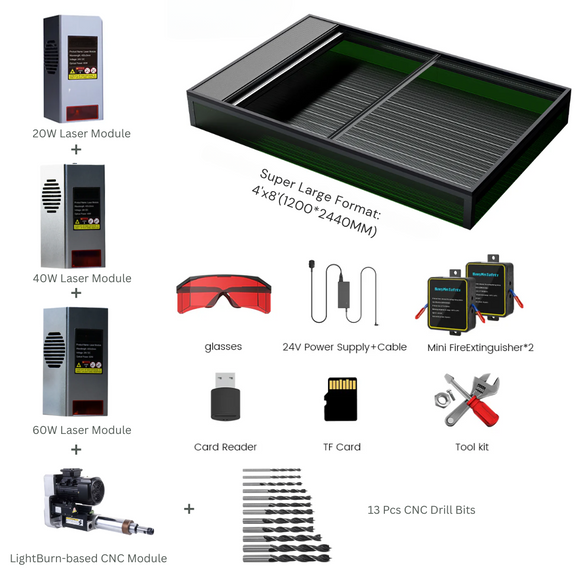

Package 3 – Super Large Format 4'x8' (1200×2440MM) – Full Combo

1. 20W + 40W + 60W Laser Modules (interchangeable)

2. LightBurn-Based CNC Module

3. 13 pcs CNC Drill Bits

4. Protective Glasses

5. 24V Power Supply + Cable

6. Mini Fire Extinguisher ×2

7. Card Reader

8. TF Card

9. Tool Kit

10. Super Large Engraving Frame (4’x8’ / 1200×2440MM
